New UBP1201 combines the hand pump and cylinder as one unit for
easy job.
Four stages of foldable & removable handle saves the handle force
during operation. Self-contain hydraulic jack with integral safety valve.
Capacity: 10 tons

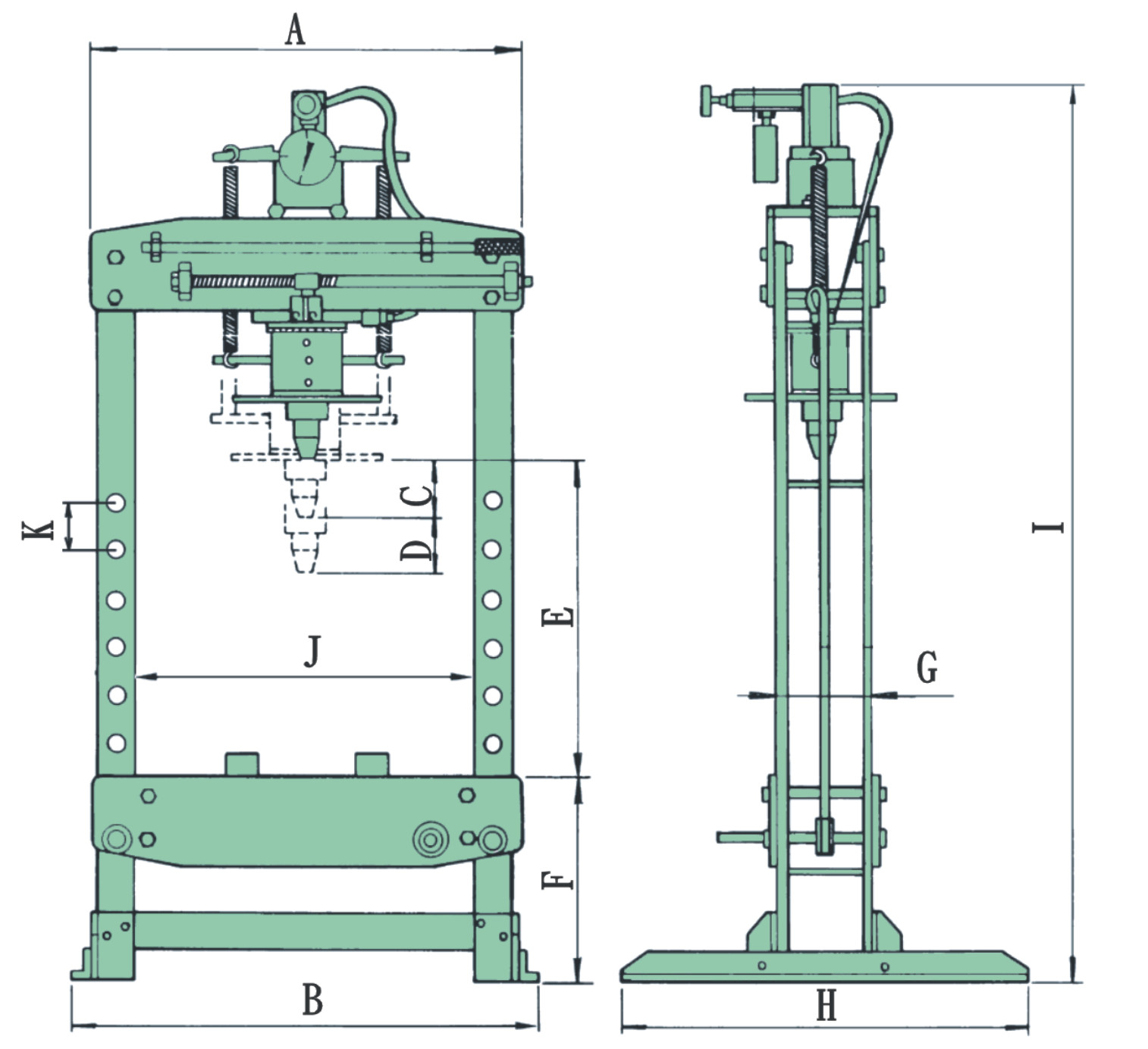

| 編號 Item | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) | G(mm) | H(mm) | I(mm) | J(mm) | K(mm) |
| UBP1201 | 460 | 536 | 85 | 50 | 534 | 50 | 135 | 304 | 958 | 360 | 102 |
| SP150A | 800 | 860 | 110 | 100 | 595 | 355 | 166 | 750 | 1640 | 628 | 90 |
| SP220B | 680 | 850 | 135 | ~ | 865 | 150 | 100 | 650 | 1560 | 570 | 120 |
| SP350A | 1000 | 1080 | 110 | 80 | 530 | 410 | 236 | 850 | 1730 | 790 | 95 |
